8.2N.m 6A 1.8deg Nema34 2 Phase Closed Loop Hybrid Stepper

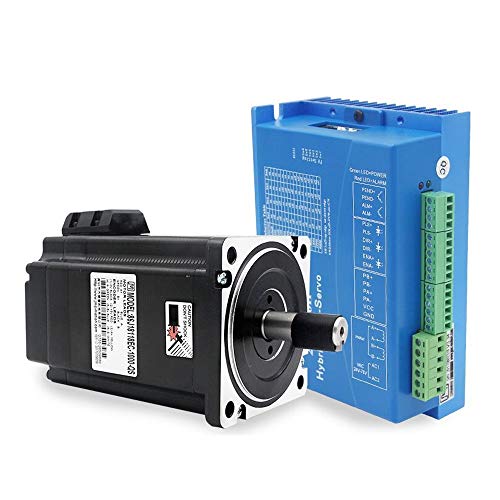

8.2N.m 6A 1.8deg Nema34 2 Phase Closed Loop Hybrid Stepper Motor 146mm Length and 2HSS86H Wide Voltage AC DC Hybrid Stepper Servo Drive (86J18118EC-1000-HZ-YJ+2HSS86H-A-5/24)
- Hybrid stepper servo drive system integrates servo control technology into the digital stepper drive. It adopts typical tri-cyclic control method which include current loop, speed loop and position loop. This product has the advantage of both stepper and servo system, and is a cost-effective motion control product.
- Without losing step, high accuracy in position, 100% rated output torque.
- Accelerate and decelerate control inside. Great improvement in smoothness of starting or stopping the motor.
- Lack of phase, over current, over voltage and over position protection，Wide voltage: AC(24-70V), DC(30-100V).
- Compatible with 1000 and 2500 lines encoder. No adjustment in general application.
Hybrid Stepper Motor Specifications:
Holding Torque: 8.2N.m
Step Angle: 1.8deg
Position accuracy: 1.8degÂ±0.09deg
Number of phase: 2 phase
Current Phaseï¼š6A
Resistance Phaseï¼š0.53ohms
Inductance Phase: 4.7mH
Detent Torque: 2500gcm
Rotor Inertia: 3600g.-cmÂ²
Temp rise(max): 80â„ƒ
Insulaton Class: B
Lead Wire: 4
Length: 146mm
Weight: 4KG
2HSS86H Hybrid Stepper Servo Drive Specification:
Current: 0-8A
Voltage: AC(24-70V),DC(30-100V)
Weight: 0.6KG
Dimension: 150mm*97.5mm*53mm
Control Signal: Differential
Environment
Space: Avoid dust, oil frost and corrosive gases
Ambient Temperature: -20â„ƒ- +80â„ƒ
Humidity: <80%RH
Vibration: 5.9m/sÂ² Max
Package contains
Servo Drive * 1
Hybrid Stepper Motor * 1
Encoder Cable 3m
You can send us an email with user manual!
Country USA
Brand Cannan
EAN 0686603389478
Label Cannan
Manufacturer Cannan
Publisher Cannan
Size 86J18118EC-1000-HZ-YJ+2HSS86H-A-5/24
Studio Cannan
ReleaseDate 0000-00-00
