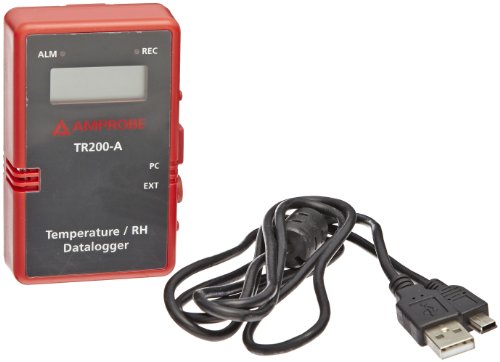

The Amprobe TR200-A dual-scale relative humidity (RH) and temperature meter with datalogging capability saves up to 16,000 data points, and is used for HVAC, indoor air quality, and environmental applications. The dual-scale thermometer has a silicon photodiode sensor and filter. The meter has a 3-3/4 digit LCD display with a maximum reading of 1,999, a port that accepts an external temperature probe (Amprobe TPK-60, available separately), and can be programmed to accept user-defined alarm limits.
The meter saves up to 16,000 data points that can be exported to a personal computer. Data transfer requires an RS232 cable and software (included). The software supports Microsoft Windows NT, Windows 95, Windows 98, Windows 2000, Windows ME, Windows XP, and Windows 7 (32- and 64-bit). The meter is wall mountable, and Ingress Protection (IP)-65 rated for dust and moisture protection. It requires one CR2032 battery (included), and includes an RS232 cable, a CD-ROM, and instructions.
Specifications
| Temperature range | -40 to 185 degrees F (-40 to 85 degrees C) |
| Temperature resolution | 0.1 degree F/C |
| Temperature accuracy | + or - 1 degree F (0.6 degree C) for temperatures -4 to 122 degrees F (-20 to 50 degrees C), + or - 1.2 degrees F/C for all other temperatures |
| Operating temperature | 14 to 140 degrees F (-10 to 60 degrees C) up to 100 percent relative humidity (RH) |
| RH range | 0.0 to 99.9 percent |
| RH resolution | 0.1 percent |
| RH accuracy | + or - 3 percent at 77 degrees F (25 degrees C); + or - 5 percent at all other temperatures |
| Operating environment | Indoors, at altitudes below 2000 meters |
| Storage environment (with battery removed) | -40 to 185 degrees F (-40 to 85 degrees C) up to 100 percent RH |
| Dimensions | 2.95 x 2.16 x 0.9 inches/75.5 x 53 x 23.5 mm (H x W x D) |
| Weight | Approximately 0.044 lb. (0.02 kg), including batteries |
| Approvals and certifications | IP-65, and conforms to EN61326-1 |
H is height, the vertical distance from lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back.
Dataloggers log temperature and humidity readings in field and lab applications in the hydroponic, agriculture, educational and research industries.
Amprobe manufactures electrical testing equipment for commercial, industrial, and home use. The company was founded in 1948 and is headquartered in Everett, WA
What’s in the Box?
- Meter
- CR2032 battery
- CD-ROM
- RS232 cable
- Instructions
