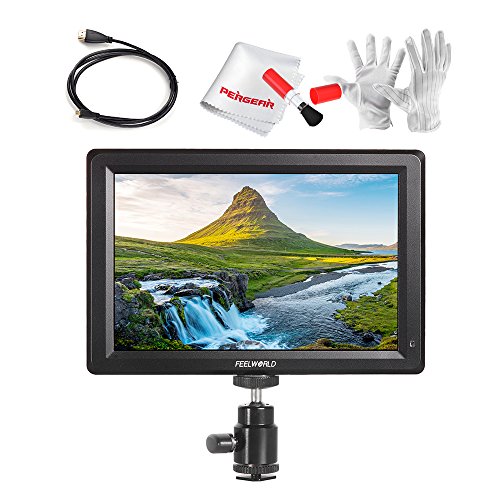

Feelworld F7 7 Inch IPS Full HD 1920x1200 On Camera Field

Feelworld F7 7 Inch IPS Full HD 1920x1200 On Camera Field Monitor Supports 4K HDMI Input/Output 1200:1 High Contrast 450cd/m2 High Brightness 160 Wide Viewing Angle for Sony A6300 A6500 DSLR Cameras
- Full HD 1920x1200 High Resolution, Impressive 323 PPI. Support 4K HDMI Input and Output. Brings you the perfect visual experience.
- Richer, Brighter and More Colorful with 450nit brightness, 1200/1 Contrast Ratio. 160° Wide View angle, enjoying consistent images from any perspective.
- Histogram, Peaking Focus Assist, False Colors, Zebra Exposure, Zoom (Auto,4x,9x,16x), Anamorphic Mode (1.3x,2.0x,2.0x mag), etc.
- Ultra-Thin Ultra-Light IPS Panel: 22.95mm in Thickness 280g in weight. Supports F970 battery plate, D28S/D54, E6 and U60 battery plate (Optional), and Power Adapter(Optional).
- Standard Two 1/4"-20 Thread Socket(Top and Bottom), easy to install DSLR Rig, Camcorder Kit, Handheld Stabilizer, Video Camera Crane, combined with image flip function, convenient for field shooting.
HDMI Input/Output Support Format
480i/576i/480p/576p
1080i (60/59.94/50)
720p (60/59.94/50/30/29/25/24/23.98)
1080p(60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF)
4K UHD 3840×2160p (30/29.97/25/24/23.98)

Advanced Features
*Histogram
*Pixel to Pixel
*Focus Assist (has High-Low level to adjust; Red, Yellow, Blue, White four color optional highlight over parts of the image in focus)
*Center Marker
*Safe Area(80%,85%,90%,93%,96%)
*False Color
*Marker Type(16:9,4:3,2.35:1,1.85:1)
*Zebra Exposure (0-100IRE adjustable)
*Marker Color(Red,Green,Blue,White,Black,Cyan,Purple,Yellow)
*Nine Grid (Zoom one of the images to realize the full screen)
*Check Field(Gray/Red/Green/Blue)
*Embedded audio meter
*Image Flip (H, V, H/V)
*Camera Mode
*Image Freeze
*Scan Mode (Auto,Over Scan, Full Screen)
*Color Temperature Adjustment
*Zoom (Auto,4x,9x,16x)
*Anamorphic Mode (1.3x,2.0x,2.0x mag)
F7 Specifications:
Screen size: 7" IPS
Resolution: 1920x1200 pixels
Dot pitch: 0.07875 (H) x 0.07875 (W) (mm)
Aspect Ratio: 16:10
Brightness: 450cd/m2
Contrast: 1200:1
Backlight: LED
Viewing Angle: 80°/80°(L/R) 80°/80°(U/D)
Input: HDMI
Output: HDMI
Audio Out: Stereo Headphone, Speaker(Built-in)
Power Consumption: ≤8W
Input Voltage: DC7 ï½ž24V
Power Connector: DC
Battery Plate: F970 (Standard); D28S/D54, LP-E6 (Optional)
Operating Temperature: (-20~55)celsius
Storage Temperature: (-30~65)celsius
Install Way: 1/4"-20 Thread Socket (top, bottom)
Unit Size: 180Lx120Hx22.95D (mm)
Unit Weight: 280g/310g (With F970 Battery Plate)
Package Contents:
1* FEELWORLD F7
1* Sunshade
1* F970 Plate
1* Cold Shoe Mount
1* Mini HDMI Cable
1* Micro HDMI Cable
1* Product Manual
1* PERGEAR Cleaning Kit

Country	USA
Brand	FEELWORLD
Manufacturer	Feelworld
Binding	Electronics
ItemPartNumber	F7+PERGEAR Cleaning Kit
Model	F7+PERGEAR Cleaning Kit
Color	Black
Size	7 inch
UnitCount	1
UPCs	611968663253
EANs	0611968663253
ReleaseDate	0000-00-00
