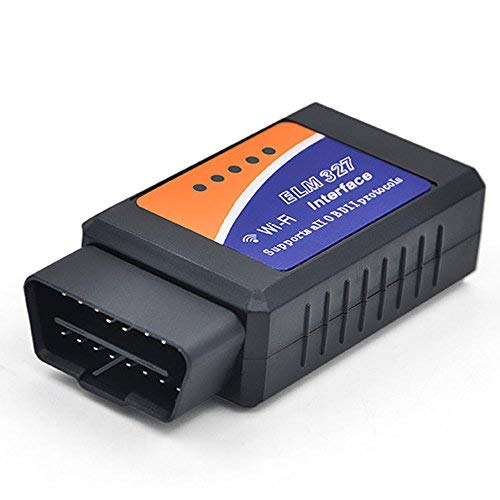

KINGBOLEN WiFi OBD2 OBDII Auto Diagnostic Scanner Tool Adapter for iPhone/Android/PC obd2 Scanner OBD2 Code Reader

Hardware Version V1.5
1.Works with all OBD-II compliant vehicles.
2.Software included in CD for Smartphone, PC and iOS (iPhone, iPad, iTouch, Mac).
3.Clear trouble codes and turn off the MIL ("Check Engine" light).
4.Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).

Technical Specifications
SSID: WiFiOBD
IP: 192.168.0.10
Subnet: 255.255.255.0
Port: 35000
Range: 50 ft (Line of sight)
Antenna: Internal
Power Consumption: 0.75 Watts (With Power Switch)
Wifi Standard: 802.11a/b/g
Operating Temperature: -15 to 100 Deg Celsius
Plastic: Automotive Grade
Physical Dimensions: 2.75 x 1.25 x 1.2 inches

Description
WI-FI OBD AUTO CHECKER is capable of communicating with vehicles which adopt following protocols:
ISO 9141
ISO 11898(aka. CAN)
ISO 14230(aka. KWP2000)
ISO 15765(aka. CAN)
SAE J1939


Following are some of the parameters which could be read from the vehicle.
Vehicle Speed
RPM
Fuel Consumption
Engine Coolant Temp
Fuel Pressure
Calculated Engine Load
Throttle Position
Intake Manifold Pressure
Air Intake Temp
Timing Advance
Mass Air Flow
Fuel Level
Barometric Pressure
EVAP System Vapor Pressure
Fuel Trim
*note: Your vehicle may not support all above parameters. How many parameters you can get is depended on the vehicle manufacturer's implementation.

 Where can I get the software?
You can log on to the apple application store to get your commercial software, such as Dynolicious.
And There is a software in the CD-ROM comes along with the device. You can use this piece of software to config and test the WI-FI OBD AUTO CHECKER.
