Lapetus 16 Channel Port 12V DC 10 Amp Amper with PTC Fuse

Description Specifications
Description

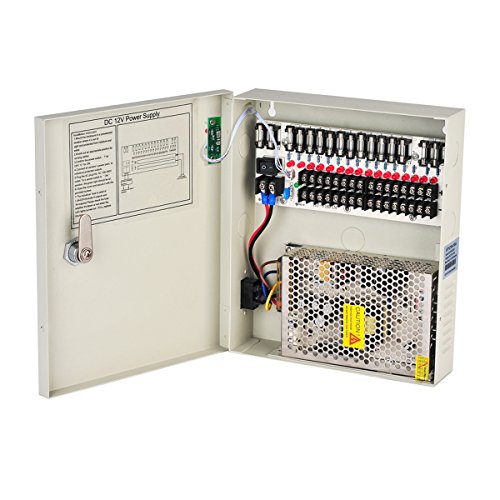

Lapetus 16 Channel Port 12V DC 10 Amp Amper with PTC Fuse Distributed Power Supply Box for CCTV DVR Security System and Camera or cameras
- Input Voltage : AC100-240, 50/60 Hz / Output Voltage : 12V DC 10A
- Key Lock Prevent Unauthorized Access, Individual LED power indication
- Fuse Type : Glass Tube Resetable, Fuse Rating : 1.5 A - Indoor Use Only
1, General Protection: Individual Protective Tube with Fuse and LED indicator on each output, when problem occurs, only affect the individual output, other outputs still working;
2, High voltage protection: When high voltage occurs, the surge protection will be hit through to protect the connected device;
3, Over Current protection: When over current occurs, the power supply will automatically switch to self-protection status, when it is removed, then it will return to normal state;
4, Application: CCTV Camera, PTZ, IR Illuminators, Video Process,Access Control, etc.
Input Voltage Range AC90V-264V
Input Frequency Range 50Hz-60Hz
Output Voltage Range DC12V+/-5%
Output Current 10 Ampere
Output Power 120 Watt
Output Ripple&Noise â‰¤51MV
Output Efficiency â‰¥81%
Output Channel 16Channel
Output Fuse Type Glass Tube
Output Fuse Rating 1.5A
Environment Operatiing Amb.Temp -30â„ƒ~45â„ƒ 20%~90%RH
Envionment Storage Temp -40â„ƒ~85â„ƒ 10%~95%RH
Product Dimension 246*208*52mm
Product Weight 1.63 Kg
Transmission Distance 100M
Specifications
Country USA
Binding Electronics
Brand Lapetus
EAN 0727670805000
Label Lapetus
Manufacturer Lapetus
Model 4330214824
MPN 4330214824
PartNumber 4330214824
Publisher Lapetus
Size 12v10a 16ch
Studio Lapetus
ReleaseDate 0000-00-00
