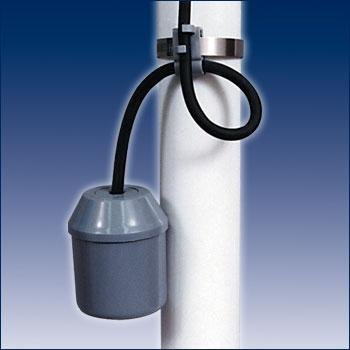

SJE Rhombus Junior Super Single Submersible Sump Pump Float

SJE Rhombus Junior Super Single Submersible Sump Pump Float Switch 10Ft P/N 1012434
- Controls pumps up to 1/2 HP at 120 VAC and 1 HP at 230 VAC
- Adjustable pumping range of 6.5 - 19 inches (16.5 - 48 cm)
- Without a plug for direct wiring in 120 VAC or 230 VAC applications
Specifications: CABLE: Flexible 16 gauge, 2 conductor (UL, CSA) SJOW, water-resistant (CPE) FLOAT: 2.81 inches diameter x 3.42 inches long (7.14 x 8.68 centimeter) high impact, corrosion resistance, PVC housing for use in sewage and water up to 140oF (60oC) MERCURY SWITCH: Mercury-to-metal contacts, hermetically sealed in a steel capsule ELECTRICAL: 120 VAC 50/60 Hz Single Phase: Maximum Pump Running Current: 13 amps Maximum Pump Starting Current: 40 amps Recommended Pump HP: 1/2 HP or less 230 VAC 50/60 Hz Single Phase: Maximum Pump Running Current: 8 amps Maximum Pump Starting Current: 20 amps Recommended Pump HP: 1 HP or less NOTE: This switch must be used with pumps that provide integral thermal overload protection. This product does not come with a plug on the end. Hardwire installation.
Country USA
EAN 0762022551334
Label SJE Rhombus
Manufacturer SJE Rhombus
Model P/N 1012434
MPN 1012434
PartNumber 1012434
Publisher SJE Rhombus
Studio SJE Rhombus
ReleaseDate 0000-00-00

SJE Rhombus Junior Super Single Submersible Sump Pump Float Switch 10Ft P/N 1012434
