TekPower TP3165, Intelligent Frequency Counter 0.1Hz to

Description Specifications
Description

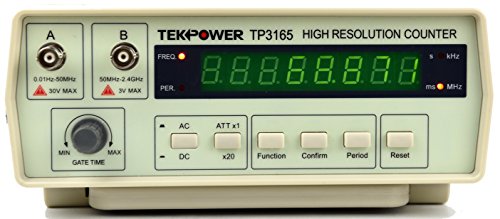

TekPower TP3165, Intelligent Frequency Counter 0.1Hz to 2.4Ghz, with high resolution OEM Victor VC3165
- Computer CPU controlled temperature compensation for high stability and Higher Resolution
- 8-digit LED display, clear reading and gate time adjustable continuously (100ms - 10s)
- Two attenuator X1 ,X 20 for up to 2.4 Ghz, Frequency measurement: 0.01Hz - 2.4 GHz , it is great counter for cellphone repair and WiFi checking
- Period measurement: 0.5µs - 10s, Input sensitivity: 30mV(rms), Power: 110V or 220V
- Tekpower One Year Warranty
TP3165 is a perfect tool for frequency counting from low up to 2.4G hz. With the single chip computer control the frequency is very stable , the temperature compensation makes this counter with high resolution.
Specifications:
In Put: Channel A (0.01 Hz - 50Mhz)
Frequency Range: DC Couple 0.01Hz to 100Hz,
AC: couple 100Hz to 50Mhz
Sensitivity: AC: 100Hz -50Mhz < 120mVrms
DC: 0.01Hz -1 Hz< 500m Vp-p
Input Impedance: 1 M Ohms
Attenuator: X1 , X20
Max safe voltage < 30V (DC/AC Peak)
Channel 2:(50Mhz- 2.4Ghz)
Frequency Range: 50Mhz - 2.4G hz
Sensitivity: 50mV rms - 300mV rms
Coupling: AC only
Input impedance 50 Ohm
Time Base:
Short Time stability: +- 3X 10-9/second
Long Time Stability: +- 2X 10-8/month
Temp. Drift coefficient: +- 1 x10-7, 10Â°C - 40Â°C
Gate Time: Continuously variable from 100ms to 10 seconds.
Package Included:
1 X TP3165
1 X RF connector
1 X User's manual
Specifications
Country USA
Brand Tekpower
Manufacturer Victor
Binding Electronics
ItemPartNumber TP3165
Model TP3165
EANs 6926349156052
ReleaseDate 0000-00-00

Country	USA
Brand	Tekpower
Manufacturer	Victor
Binding	Electronics
ItemPartNumber	TP3165
Model	TP3165
EANs	6926349156052
ReleaseDate	0000-00-00

TekPower TP3165, Intelligent Frequency Counter 0.1Hz to 2.4Ghz, with high resolution OEM Victor VC3165
