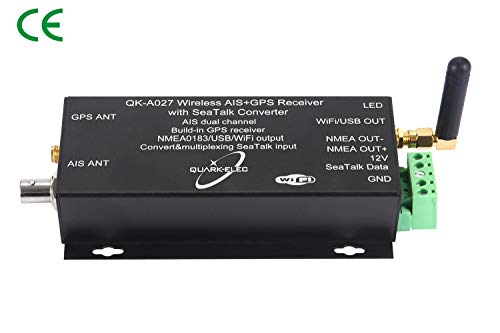

Wireless AIS Receiver + GPS With SeaTalk Converter (QK-A027)

Wireless AIS Receiver + GPS With SeaTalk Converter (QK-A027)
- Compact dual channel AIS receiver
- Multiplexer: combines AIS, GPS and Seatalk*
- Can be used wireless (WiFi) or through the USB or NMEA ports
- Integrated GPS module that can track up to 22 satellites on 66 channels.
- Compatible with Chart plotters, Windows, Mac OS X, Linux systems, Android and iOS
Introduction

QK-A027 is a compact dual channel, VHF AIS receiver which is able to receive information from both AIS frequencies simultaneously. It includes integrated GPS that can track up to 22 satellites on 66 channels. It can also combine one external Seatalk1 data bus with GPS and AIS messages. This single data stream is then transmitted synchronously via WiFi, USB and NMEA RS422.

Features
· Two independent receivers monitoring both AIS channels (161.975MHz &162.025MHz) and decoding both channels simultaneously.
· Sensitivity up to -104 dBm@30% PER
· Up to 30 nautical miles receiving range
· Powered by the Seatalk bus (<120mA@12.0V)
· NMEA-0183 message output through WiFi,USB and RS422
· Configurable baud rates: (4.8, 9.6, 38.4k input and output)
· Simultaneous wireless and USB output
· The internal WiFi access point connects up to 4 devices simultaneously
· Ad Hoc and Station operating modes
· SeaTalk to NMEA 0183 protocol converter
· Built-in GPS to provide positional data
· Combines GPS and AIS messages with NMEA 0183 and outputs as a seamless stream of data
· BNC connector for 50 Ohm VHF antenna
· Powered SMA connector for 50 Ohm GPS antenna
· Plug & Play connectivity with chart plotters and PCs
· Compatible with Windows, Mac, Linux, Android and iOS (Initial Configuration must be completed using Windows software.)
· This device connects to NMEA 0183 and is compatible with RS422 output devices. NMEA 0183-RS232 devices can connect to our device by using the Garmin Bridge (QK-AS03)
· This device does not come pre-loaded with map data. We advise using openCPN for map data. Some iOS apps may charge for map use

Drivers, Quick Start Guides and application notes can be downloaded from the Quark-elec website, or the CD sent with the product. For technical questions, please go to the Quark-elec website forum.
Country USA
Brand Quark-elec
Manufacturer Quark-elec
Binding Electronics
ItemPartNumber QK-A027
Model QK-A027
EANs 1909073400719
ReleaseDate 0000-00-00

Country	USA
Brand	Quark-elec
Manufacturer	Quark-elec
Binding	Electronics
ItemPartNumber	QK-A027
Model	QK-A027
EANs	1909073400719
ReleaseDate	0000-00-00
