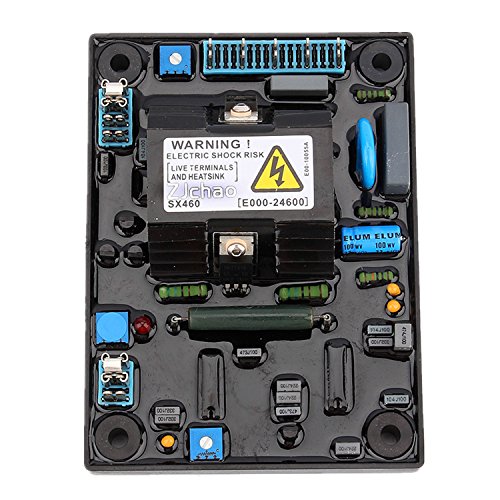

ZJchao(TM) Automatic Voltage Regulator AVR SX460 for Generator [Electronics]

Description:
SX460 is a half-wave phase-controlled thyristor type Automatic Voltage Regulator(AVR) and forms part of the exciation system for a brush-less generator

In addition to regulating the generator voltage,the AVR circuitry includes under-speed and sensing loss protection features.Excitation power is derived directly from the generator termainals

Positive voltage build up from residual levels is ensured by the use of effcient semiconductors in the power circuitry of the AVR

Provision is made for the connection of a remote voltage trimmer,allowing the user fine control of the generator's output
Input:
Voltage:Jumper selectable 95-132V ac or 190-264V ac

Frequency:50~60Hz nominal

Phase:1
Output:
Voltage:Max 90V DC at 207V AC input

Current:continuous 4 A DC

Intermittent 6 A for 10 secs

Resistance:12 ohms minimum
Environment:
Vibration:20-100 Hz 50mm/sec

100Hz-2kHz 3.3g

Operating Temperature:-40Â°C to + 60Â°C

Storage Temperature:-55Â°C + 80Â°C

Relative Humidity 0-70Â°C:95%(Non condensing)
Regulation:+/- 1.0%(with 4% engine governing)
Included:
1 pcs * SX460 AVR

1 pcs * English user manual

Quantity: 1pcs
Country USA
Brand ZJchao
Manufacturer ZJchao(TM)
Binding Electronics
ItemPartNumber zjchao361
UPCs 520041525657
EANs 0520041525657
ReleaseDate 0000-00-00
