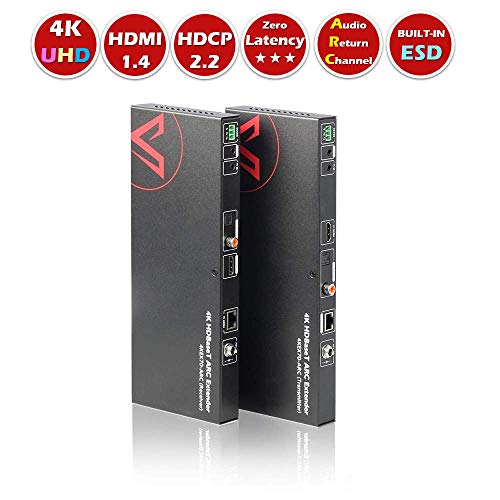

AV Access HDMI/HDBaseT Extender with ARC+PoE,Uncompressed

AV Access HDMI/HDBaseT Extender with ARC+PoE,Uncompressed Signal Over Cat5e/6a/7 up to 4K 130ft(40m),1080P 230ft(70m),S/PDIF Audio De-embed,Bi-Directional RS232+IR Control,HDCP2.2,Dolby Atmos, DTS: X
- HDMI/HDBaseT extender with ARC(audio return channel), supports 4k uncompressed signal transmit via single Cat5e/6a/7 cables up to 4K@60Hz 130ft/40m and 1080P@60Hz 230ft/70m.Compliant with HDMI 1.4 and HDCP.
- With S/PDIF audio de-embed on transmitter and receiver.Premium ARC feature allows you to free the audio from on-demand content within a SmartTV with ARC or optical audio return functionality.Supports PoE(TX powers RX),bi-directional IR and RS232 pass through,EDID management
- All interfaces(ports) are in one side,threaded power connection and mounting ears easy for installation.
- With built-in surge/lightning protection.Superior ESD protection: +/- 8KV(Air-gap discharge ) +/- 4KV(contact discharge )
- 1-Year Warranty, and easy-to-reach friendly customer service (AV Access)
Package Contents
1 x 4KEX70-ARC Transmitter
1 x 4KEX70-ARC Receiver
1 x Power Supply (DC 12V 2A)
2 x Phoenix Male Connector (3 Pin 3.5mm)
1x IR Emitter
1 x Wide-band IR Receiver (30KHz~50KHz)
2 x Mounting Brackets (Pair)
1 x User Manual

General Information
Dimension: 240mm x 25mm x 90.2mm
Weight: 1.16kg(pair)
Power Supply: DC 12V 2A Power Supply
Power Consumption: 17.64W

Technical Details
I/O Connections:
1 x HDMI IN(TX),1 x HDBT OUT(TX),2 x S/PDIF AUDIO OUT(TX)
1 x HDBT IN(RX),1 x HDMI OUT(RX),2 x S/PDIF AUDIO OUT(RX)

Input/Output Signal Type:
HDMI 1.4, HDBT 2.0;
Input/Output Resolution Support:
4096x2160@24/60Hz,3840x2160@24/25/30/50/60Hz,1920 x 1200@60Hz,2048 x 1152@60Hz,1920 x 1080@50/60Hz,1680 x 1050@60Hz,1600 x 1200@60Hz, 1600 x 900@60Hz, 1440 x 900@60Hz, 1366 x 768@60Hz, 1360 x 768@60Hz, 1280 x 1024@60Hz, 1280 x 720@50/60Hz
Transmission Distance :
Via Cat5e/6 cables: 4Kx2K@60Hz output up to 35m,1080P@60Hz up to 60m
Via Cat6a/7 cable, 4Kx2K@60Hz output up to 40m,1080P@60Hz up to 70m.
