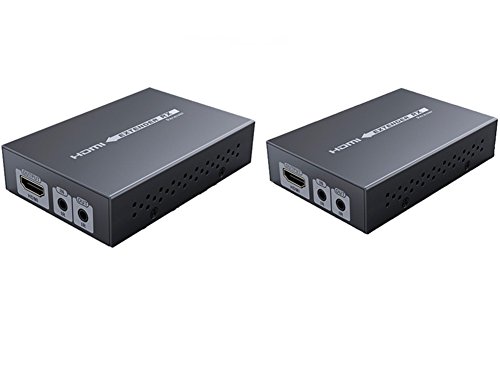

E-SDS 4K HDMI Extender, HDMI over Single CAT5E/6/7 Cable up to

E-SDS 4K HDMI Extender, HDMI over Single CAT5E/6/7 Cable up to 230ft (1080P) 130ft(4K) Supports 4K 60Hz, 3D, 1080P, HDCP2.2/1.4,Bi-directional IR Remote CV0013
- This single network cable extender transmits HDMI signal up to 70meters over cat6 fluently and clearly
- It is lossless in signal and supports full HD 1080p@60Hz, 3D, 24bits deep color, 4Kx2K, CEC and HDCP
- Support uncompressed LPCM audio and compressed DTS-HD, Dolby True HD
- Can be powered by network cable. It only needs to input 12V power for either transmitter or receiver for normal working
- It supports bi-directional IR pass back . User can control DVD at TX end and control TV at RX end
The HDMI Extender extends your HDMI signal (up to 196ft/60m) to a compatible HDMI display through a single Ethernet cable. Bidirectional IR signal is also carried with HDMI, which means you can remotely control your device at either side of the connection. For example, control the source Blu-ray player from the remote TV location at a distance of up to 196ft far away.

Specifications:
HDMI signal: HDMI1.4, compatible with HDCP2.2/1.4; support CEC and 24bits deep color
Resolution support: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 3D, 4kx2k/30Hz/60Hz YUV420
Ethernet cable support: CAT5E, CAT6, CAT6A, CAT7
IR: Support 20~60kHz wide frequency devices and Bi-directional IR transmission

Transmission distance: VCAT5E/6: 196ft/60m for up to 1080P@60Hz 36bit; 115ft/35m for 1080P@60Hz 48bit, 1080P@60Hz 3D, 4kx2k 30Hz/60Hz YUV420;
CAT6A/7: 230ft/70m for up to 1080P@60Hz 36bit; 131ft/40m for 1080P@60Hz 48bit, 1080P@60Hz 3D, 4kx2k

Package Content:
HDMI Sender x1
HDMI Receiver x1
IR blaster cable x1
IR receiver cable x1
DC5V2A Power Adapter x1
User Manual x1
Country USA
Brand E-SDS
Manufacturer E-SDS
Binding Electronics
ItemPartNumber CV375
Model CV375
UPCs 602731371239
EANs 0602731371239
ReleaseDate 0000-00-00

Country	USA
Brand	E-SDS
Manufacturer	E-SDS
Binding	Electronics
ItemPartNumber	CV375
Model	CV375
UPCs	602731371239
EANs	0602731371239
ReleaseDate	0000-00-00

E-SDS 4K HDMI Extender, HDMI over Single CAT5E/6/7 Cable up to 230ft (1080P) 130ft(4K) Supports 4K 60Hz, 3D, 1080P, HDCP2.2/1.4,Bi-directional IR Remote CV0013
